A warping plan must answer more than how many cones fit on a creel. It must place every required end, provide enough usable length and stay within the limits of the next process. A correct total mass cannot compensate for a missing end or a short beam.

The main source of confusion is the word “length.” A beam has a sheet length, each end has its own length, and the total yarn length is the sum across all ends. These quantities are related, but they are not interchangeable.

This guide follows an original planning case through those distinctions. All figures are teaching assumptions, not a machine recipe or recommended waste allowance. The calculations show how to test a plan before it becomes a creeling instruction.

Identify the route and the beam being counted

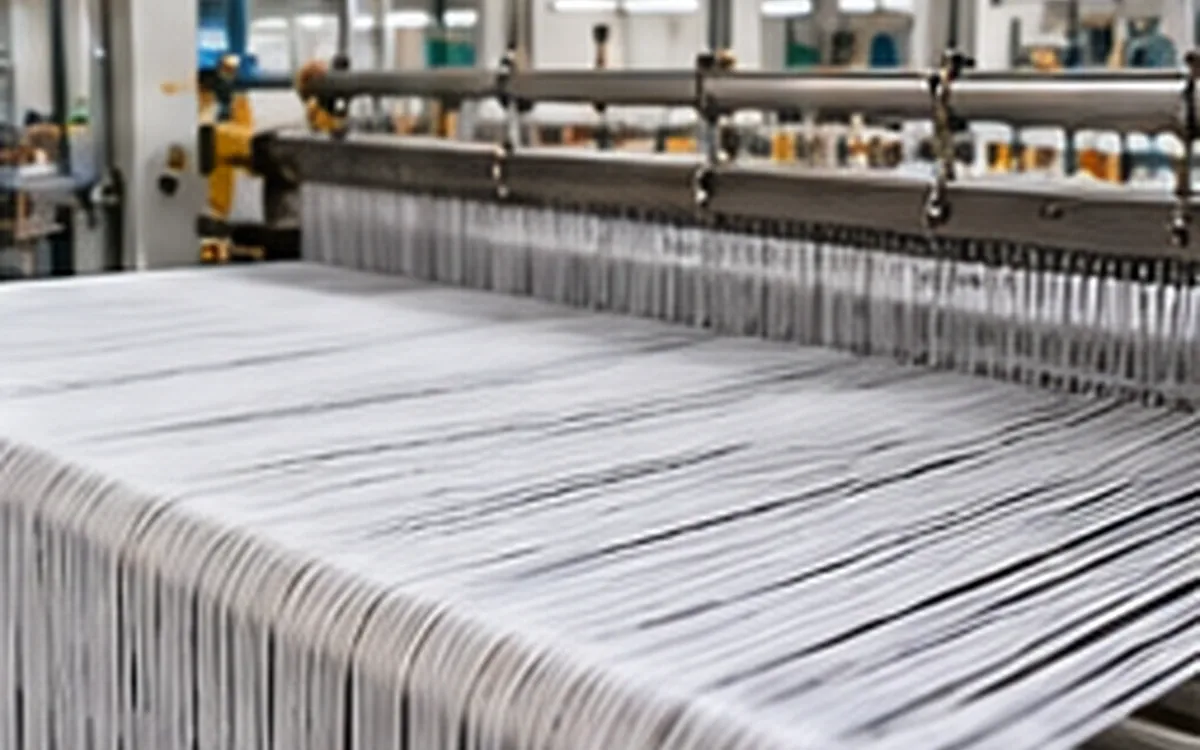

In direct warping, yarns travel from packages on a creel to a warper's beam. Several such beams may later feed an assembling or sizing process that produces the full warp for a loom. CottonWorks' preparation guide describes this combination of parallel yarn sheets and stresses the need to preserve end order and tension.

For the direct example here, a beam set means the group of warper's beams that supplies one complete warp. It does not mean that each member already holds every end needed by the loom. Label the set and its individual beams separately.

Sectional warping has a different arrangement. Bands are wound beside one another on an intermediate drum, then transferred together to a beam. The CBSE Woven Textiles teacher manual describes that separate drum-to-beam operation and its use for patterned warps. A band is a group across the width; it is not an extra length placed after another band.

Thus, eight bands of equal length make a wider warp of that length. They do not make a warp eight times longer. The same distinction applies when several direct-warper beams are combined. The end counts add across the sheets, while the shared usable length depends on every contributing end having enough yarn.

Confirm the actual route before estimating time. Sectional beaming, direct-beam assembly and sizing are different operations. A comparison that includes one route's transfer stage but omits another route's downstream work cannot establish which is cheaper or faster.

Count ends on a stated width basis

An end count can be calculated from width and end density only when both refer to the same fabric state. Ends per centimetre measured in finished cloth cannot simply be multiplied by a width measured in the reed. Finishing and weaving can change the width without changing the intended number of warp ends.

Assume our construction calls for a 150 cm body width at the stated preparation basis, with 36 body ends/cm. It also specifies 24 extra selvedge ends at each edge. The edge ends are outside the stated body width.

Body ends = 150 × 36 = 5,400 ends

Total ends = 5,400 + 24 + 24 = 5,448 ends

This total is the starting requirement for both examples below. In the direct example, all ends use the same nominal yarn. The later sectional example adds a colour sequence while retaining the same end count and linear density.

Check whether a supplied width already includes the selvedges. Adding them again would create an unwanted surplus. Also check any separately fed leno, catch or auxiliary ends. They need their own identified supply, and they should enter this beam count only if the route actually puts them on this beam.

A fractional result from width multiplied by density needs an engineering decision. It may reflect rounded specifications or an incompatible repeat. Do not quietly round the end count and assume that the stripe, draft and edge design still agree. Reconcile the construction with the person responsible for the fabric design.

Build the length requirement from the cloth outward

Warp yarn follows a curved path through the cloth. ISO 7211-3:1984, confirmed as current in 2023, describes crimp using the extra straightened yarn length as a percentage of its length in the fabric. Its public scope also makes clear that the straightening tension depends on the yarn. A forceful hand pull is not a substitute for the specified method.

For this example, assume a suitable pilot gives 5% warp crimp on the fabric-length basis. The target is 3,000 m of greige cloth, before later finishing. The yarn length incorporated into that cloth is:

Useful warp length per end = 3,000 × 1.05 = 3,150 m

Now allow 30 m per end for the stated loom setup and unusable tail. The required usable delivery to that stage becomes 3,180 m. These fixed metres are separate from the next allowance.

Assume 1.5% of the length wound at warping is lost before that usable delivery, leaving 98.5%. All lengths in this simplified case use a common reference state, with no separate process stretch or shrinkage. Then:

Required warping length = 3,180 ÷ 0.985 = 3,228.43 m per end, rounded for display.

Choose an illustrative set length of 3,230 m. This is a planning value subject to the equipment and process checks below. It leaves 3,230 × 0.985 = 3,181.55 m after the assumed loss. After subtracting the 30 m allowance, the predicted cloth length is:

Predicted greige length = 3,151.55 ÷ 1.05 = 3,001.48 m.

The small excess is a rounding buffer, not evidence that the loss estimate is reliable. Nor does adding 1.5% to the required output exactly reverse a 1.5% loss from input. The denominator is what matters.

Keep each allowance attached to its cause and stage. A package tail retained on a cone is different from yarn lost during later handling. If both are included in one historical percentage, do not add the same tail again as fixed metres. Where the process changes yarn length under tension, use measured conversions between stages instead of hiding that change inside “waste.”

Allocate a direct-warper beam set

Assume the selected creel can supply 720 active ends for this job. Use the usable, approved positions under the intended package arrangement. Spare holders and reserve packages do not automatically add running ends.

The minimum number of warper's beams from end capacity alone is:

Minimum beams = round upward (5,448 ÷ 720) = 8 beams.

Rounding upward tells us how many beams are needed, but it does not complete their allocation. Loading seven beams with 720 ends would leave only 408 ends for the eighth. That sum is correct, yet the uneven sheets may not suit the later combining process.

In this case, assume the downstream equipment accepts a balanced eight-beam set. Divide the ends equally:

Ends per beam = 5,448 ÷ 8 = 681 ends.

Every beam is wound to the same planned length of 3,230 m. Each has 39 unused positions relative to the stated 720-position limit. Using fewer positions is a deliberate allocation, not lost yarn.

KARL MAYER's WARPDIRECT description identifies equal warping lengths and controlled beam build as process features. Those functions help carry out a sound plan; they do not validate the entered end count or guarantee that a particular downstream machine accepts eight beams.

Check the assembling creel's beam capacity, shaft arrangement, widths and load limits as well. If it can accept only seven beams, the arithmetic does not authorise overloading the warper to avoid the conflict. A different approved route, creel arrangement or beam-set design is needed.

The combined warp contains 8 × 681 = 5,448 ends, each planned at 3,230 m. Its length is not 25,840 m. That larger figure, 8 × 3,230, is the sum of the separate sheet lengths wound during the eight direct-warper runs.

Check what each supply package must deliver

For a yarn of linear density T tex, a length of 1,000 m has a nominal mass of T grams. Coats' numbering guide explains this fixed-length system. Use the finished yarn's stated count, not the count of one component of a folded yarn.

Suppose each package contains 900 g net yarn at 18 tex. Its nominal length is:

Package length = 900 × 1,000 ÷ 18 = 50,000 m.

Net mass excludes the tube, wrapping and other packaging. Actual usable length also depends on the measured count, yarn condition and the portion that must remain unused. The ISO 2060:1994 public scope describes a skein method with different preparation and conditioning options and stated applicability limits. Choose the appropriate agreed basis when actual count is needed.

Assume the package plan protects the last 1,000 m, leaving 49,000 m available. Further assume the same 681 packages remain at the active creel positions through all eight direct-warper runs. Each package must then deliver:

Length per package for one complete beam set = 8 × 3,230 = 25,840 m.

After one set, each package has 23,160 m of its defined available length left. That cannot supply a second full set, which needs another 25,840 m. It could nominally supply seven further beam lengths, since 7 × 3,230 = 22,610 m, but starting those beams without a completion plan would leave an incomplete set.

This is why dividing package length by the number of beams is not a universal beam-length formula. It applies only to a stated plan that reuses those packages across the runs. If a new package bank is loaded for each beam, or reserve transfers are allowed, the consumption schedule changes.

Check the least usable package among the ends that must run together. An average package mass cannot prove that every end reaches the cut length. A short package needs a documented, permitted response before the run; an unplanned join may be unacceptable for the intended fabric.

Partition a sectional warp without losing the pattern

Now consider a coloured version of the same 5,448-end construction. The body repeat contains eight A ends, eight B ends and eight C ends, in that order. All three colours and the edge yarns are assumed to be 18 tex.

Each body repeat therefore contains 24 ends, and the 5,400-end body has 225 complete repeats. The two selvedges each contain 24 A ends, outside the body repeat.

With the same illustrative limit of 720 active ends, a full body band can hold 720 ÷ 24 = 30 repeats. The edge bands must also make room for their selvedge ends. One arithmetically valid plan is:

Band position

Number of bands

Body repeats per band

Edge ends per band

Total ends per band

First

1

29

24

720

Middle

6

30

0

720

Last

1

16

24

408

The body repeats reconcile as 29 + 6 × 30 + 16 = 225. The complete end total is 720 + 6 × 720 + 408 = 5,448. No imaginary fractional band or extra repeat has been added.

Place the left selvedge before the first body's repeat and the right selvedge after the last body's repeat. The middle bands continue the same A/B/C sequence. Counting the colours gives 1,848 A ends, 1,800 B ends and 1,800 C ends across the complete warp.

The first band uses 256 A packages and 232 each of B and C. Each middle band uses 240 of each colour. The last uses 152 A packages and 128 each of B and C. These are active positions for each band, not a purchase quantity. The package-reuse plan determines how much yarn each position consumes over successive bands.

This plan proves the end arithmetic only. The smaller last band still needs approved handling on the actual drum. Band width, traverse, build, yarn tension and machine controls must support it. If equal bands are required, redesign the partition within the real constraints; do not quietly add 312 unwanted ends to fill the last band.

Suppose a different package arrangement reduces the usable creel capacity to 700 active ends. A body-only band can then hold at most 29 complete repeats, using 696 positions and leaving four unused. The original 30-repeat middle bands no longer fit. The first band also needs room for its 24 edge ends, so it can hold at most 28 body repeats, for 696 ends including the edge.

Those local checks do not yet form a revised full-warp plan. Reallocate every remaining repeat and verify the total again. A small capacity change can alter several bands, even when the total number of bands need not change. If the design permits a repeat to continue across a band boundary, record its exact continuation; restarting the colour sequence at every new band would change the pattern.

Confirm band width and build separately

If the illustrative drum layout uses 36 ends/cm for every band, a 720-end band occupies 20 cm, and the 408-end band occupies about 11.33 cm. The complete layout occupies about 151.33 cm: 150 cm for the body plus the stated edge groups.

This is an explicit assumed layout density, not a universal conversion from finished fabric density to drum setting. The actual preparation specification must establish the width basis, permitted end spacing and the way edge bands are formed.

Identical end counts do not by themselves prove equal band build. Yarn count, tension and the winding conditions influence the package. A wrong band slope or boundary can create a difficulty that a correct colour tally will never reveal.

The NOV-O-MATIC product documentation distinguishes creel capacity, working width and beam diameter. It also describes layer and circumference monitoring. Treat these as separate checks on the plan. A design can fit the end-count limit and still fail another equipment limit.

Use the machine's approved setup for traverse and drum geometry. A general calculation guide cannot supply a safe cone angle, tension setting or carriage feed for an unidentified yarn and machine. Confirm the first band's build and the later band boundaries through the permitted inspection procedure.

Reconcile yarn metres and mass

The total yarn length sums the length of every end. With all ends at the same planned length:

Total yarn metres = 5,448 × 3,230 = 17,597,040 m.

For uniform 18 tex yarn, the net unsized yarn mass is:

Mass in kg = total yarn metres × tex ÷ 1,000,000.

Mass = 17,597,040 × 18 ÷ 1,000,000 = 316.75 kg, rounded.

One 681-end direct-warper beam contains about 39.59 kg of yarn on that same nominal basis. Multiplying the unrounded result by eight recovers the set mass. Small differences caused only by rounded display values should not be mistaken for physical waste.

The sectional colour totals give another useful check. A accounts for about 107.44 kg, while B and C each account for about 104.65 kg. Their unrounded masses sum to the same set total. Colour stock must satisfy those separate needs; enough kilograms in total cannot replace a missing colour.

These figures exclude beam tare and any later size material. Compare an unsized yarn calculation with unsized net yarn mass at the same reference condition. A heavier sized beam does not prove that extra yarn length was wound.

For mixed counts, calculate each yarn group separately, then add the masses. Averaging the tex labels without weighting them by the group's total yarn length can give a misleading result. ApparelDiary's yarn-count systems guide explains the units used for that comparison.

Consider one further sensitivity check. If the uniform yarn is actually 18.4 tex on the agreed measurement basis, the same planned yarn metres require about 323.79 kg, or 7.04 kg more than the 18 tex estimate. A 900 g net package would then contain about 48,913.04 m, before any protected tail, rather than 50,000 m.

This does not mean the measured yarn is unacceptable; that depends on its specification and agreed tolerance. It means the planning calculation should use the appropriate verified input. Increasing a waste allowance cannot explain away a count difference, because they affect different parts of the balance. Keep the nominal purchasing label, measured result and planning value visible so that an apparent stock shortage can be investigated on the right basis.

Keep speed, output and elapsed time distinct

Rotational speed and surface speed have different units. If the relevant winding diameter is D metres and rotational speed is n revolutions per minute, the ideal surface speed is:

v = π × D × n, in metres per minute.

At an illustrative diameter of 0.60 m and 250 revolutions/min, this gives about 471.24 m/min. If a display already gives metres per minute, it already states a linear speed. Multiplying it by circumference again creates the wrong dimensions.

The relevant diameter can change as yarn builds. A bare-drum diameter cannot describe every later layer, and a single revolutions-per-minute reading cannot establish total delivered length. Use the machine's validated length-measuring method and its actual configuration.

Suppose the direct example winds steadily at an assumed 500 m/min. Each 3,230 m beam requires 6.46 minutes of ideal feeding time. Eight runs require 51.68 minutes. This excludes creeling, threading, acceleration, stops, beam changes and all downstream processing.

At that steady speed, 681 ends of 18 tex represent 6.129 kg/min, or 367.74 kg/h, of nominal yarn feed. That is neither fabric metres per hour nor a guaranteed shift output. If the complete set actually takes 80 minutes within a stated start-to-finish boundary, its mass output is about 237.56 kg/h.

For the eight-band sectional example, assume 400 m/min during band winding and 200 m/min during beaming. Pure winding time is 8 × 3,230 ÷ 400 = 64.60 minutes. The single full-width transfer takes 3,230 ÷ 200 = 16.15 minutes, giving 80.75 minutes before other time losses.

KARL MAYER's PROWARP specifications list warping and beaming speeds separately. The distinction matters even when both operations happen on one installation. Our invented speeds are arithmetic inputs, not settings taken from that product or evidence that either route is superior.

Test the assumptions before releasing the plan

Length allowances deserve as much attention as the end count. If the pilot crimp were 6% instead of 5%, the same 3,000 m cloth target would need 3,180 m of incorporated yarn. Adding the same 30 m and dividing by 0.985 gives 3,258.88 m at warping. The earlier 3,230 m plan would be short under those changed assumptions.

That sensitivity does not justify selecting a higher allowance without evidence. It shows which input needs confirmation. Use representative pilot results and the required finished-state route, especially when changing yarn, weave or processing conditions. Avoid treating one successful sample as a permanent consumption factor.

Before release, reconcile the construction's end count with the creel map and downstream beam arrangement. Confirm the length basis and the permitted package changes. Check the physical beam dimensions, load rating and handling equipment against the machine instructions. A calculated mass below a guessed limit is not an equipment approval.

Retain the first and last end identities, stripe phase and beam-set membership in the production record. Compare the actual cut lengths and net masses with the planned values, then investigate any difference on its proper basis. A lost end is an identity problem; a short sheet is a length problem; a tare mistake is a mass-record problem.

When the cloth reaches receiving inspection, ApparelDiary's fabric roll acceptance checklist helps connect the delivered roll to its specification. Keep that evidence linked to the preparation record. The finished result is what tests whether the original assumptions described the yarn and route well enough.
