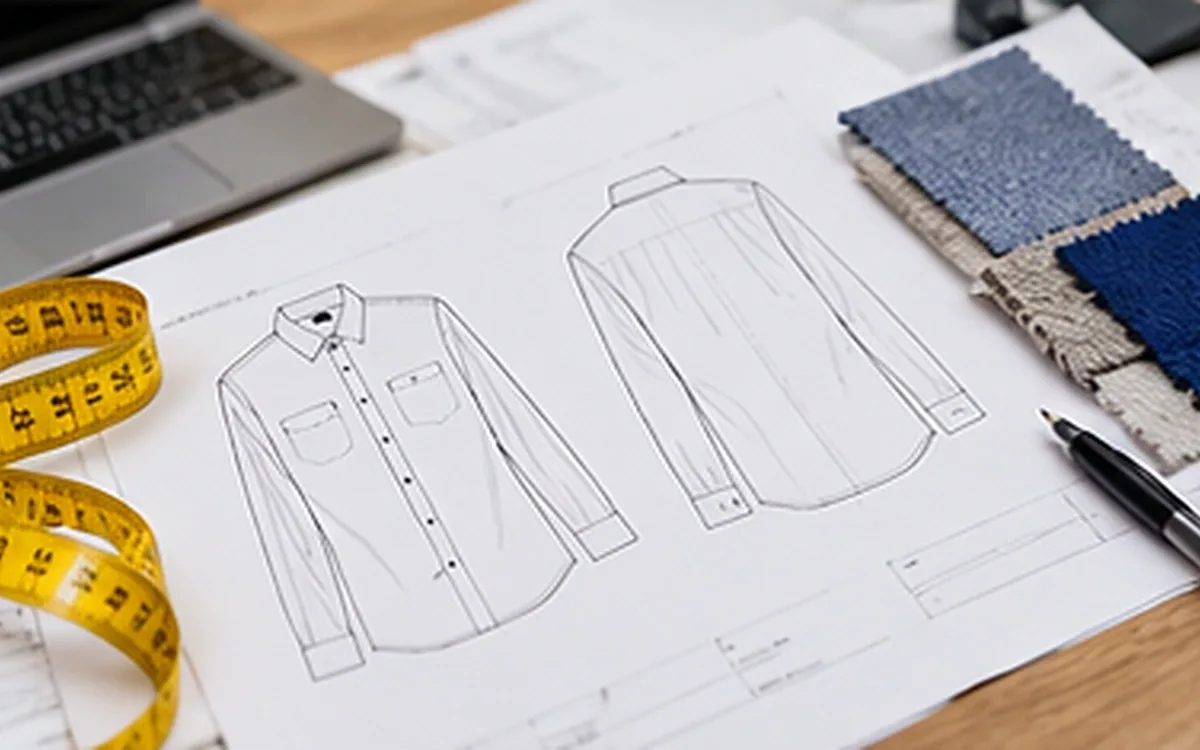

Garment Specification Sheet: Measurements, Tolerances and Revision Control

“Chest: 51 cm” looks like a clear instruction until two people measure it in different ways. One lays the garment flat. Another follows the curve across the front. A third assumes the number describes the wearer's body. The same figure now supports three different decisions.

A garment specification sheet should remove those choices where they affect the product. It defines what to make, how to check it and which version the team must follow. The document can be simple, but its meaning must be precise.

The best test of a specification is whether a competent person can use it without guessing. This guide explains how to build that clarity into measurements, tolerances, construction notes and revision control. Its worked values describe a hypothetical garment, not recommended dimensions for a real size range.

Give the specification a defined job

A specification sheet records the agreed product requirements. A technical pack may bring that sheet together with drawings, a bill of materials, artwork, test needs and packing details. Businesses use these names in different ways, so define the contents expected for the order.

The sheet should state its purpose. A request for an early price may contain open choices. A production release must identify which decisions are final and which limits still apply. Marking both documents “final” makes the distinction disappear.

List the questions the factory must be able to answer. What style is this? Which fabrics and trims belong to it? What finished dimensions are required? How should key parts be joined? What result will the buyer accept?

Keep the answer close to the relevant field. For example, a pocket position belongs beside the pocket drawing and measurement code. A general note on the last page may be missed when that page does not reach the sample room.

Use references for detail that is controlled elsewhere. A material code can link to an approved fabric record instead of repeating its full test history. Check that the receiving team can open that record and identify its current version.

Put identity and status on every working page

The cover should show the style code, product description, season or order reference, size range and version. Add the date, document owner and release status. Put enough of that identity on each page to keep a detached printout usable.

Do not rely on a filename such as “shirt latest final new.” Use a controlled version number and a short change history. A file can be new without being approved, and an approved file can later become obsolete.

Where colourways share a specification, state which fields are common and which vary. A navy shirt may use a dark sewing thread while a pale version needs another shade. If a wash treatment differs by colour, the resulting garment requirements may also need separate review.

Make the scope of a sample clear. “Size M in navy, fit review only” gives a useful limit. It does not mean that every size, colour and trim has passed review.

The ApparelDiary guide to apparel PLM covers the wider system for product data. The same habits work in a well-managed spreadsheet: clear identity, a current master and a visible approval history.

Keep body, garment and pattern measurements distinct

Body dimensions describe the wearer or fit form. Finished-garment dimensions describe the made item under a stated measuring method. Pattern dimensions describe the pieces used to create it. They may include seam allowances and other additions.

These values are related, but they are not interchangeable. A close-fitting stretch garment and a loose woven shirt can serve the same wearer with very different finished dimensions. The designer and technical team must decide the intended fit.

ISO 8559-1 defines body measurements for clothing size and shape work. Its scope helps show why a body-size reference is not a finished-garment measurement sheet. Use the correct type of data at each stage.

Label every table by what it contains. A heading such as “Finished garment, measured flat before consumer care” is more useful than “Size chart.” If the buyer requires a different stage, state that stage instead.

Digital values also have a type. The CLO-SET measurement documentation separates 2D, 3D and target measurement information. When data moves between systems, preserve that distinction. A value taken from a digital pattern should not silently become a measured result from a physical sample.

If the garment will be washed before shipment, agree whether the specification applies before or after that process. The fabric shrinkage and pattern allowance guide explains the related calculation. Here, the key task is to state which condition the finished target describes.

Define each point of measure

A point of measure, often shortened to POM, needs an identifier and a method. Its name alone may leave the starting point, ending point or path unclear. “Sleeve length” can describe several valid measurements, but only the agreed one belongs in a particular row.

For each POM, define the endpoints, measuring path and garment state. State whether closures are fastened, elastic is relaxed or stretched, and the garment is laid flat. Include any reference distance needed to locate the line.

Use the same POM code in the drawing, size table and inspection report. If a method changes, record the change. Keeping an old code can be acceptable if the revision history is clear, but people must know that earlier results may no longer be comparable.

This example shows the level of detail a shirt sheet might need. The descriptions are illustrative and must be checked against the actual design.

A method should fit the construction. A curved hem needs a clear endpoint. A dropped shoulder changes how a sleeve reference is understood. A wrap front may not behave like a shirt with a centred button stand.

Ask the sample room to explain the method back using the actual garment. This short check often reveals an ambiguous reference before anyone argues over the result. Record the settled method in the sheet so the next operator receives the same answer.

Build the size table without confusing grade and tolerance

The target is the intended measurement for a given size. A grade increment is the planned change from one size to another. Tolerance is the allowed variation around a target under the agreed acceptance rule.

Consider the following simplified table. All values are centimetres, and the tolerances are hypothetical buyer agreements for this example.

The half-chest grade is 2.0 cm between these sizes. That does not give permission for a size M chest to vary by 2.0 cm. Its agreed range is only 50.5 to 51.5 cm.

Lower limit = target − allowed negative variation.

Upper limit = target + allowed positive variation.

For size M half chest:

Lower limit = 51.0 − 0.5 = 50.5 cm.

Upper limit = 51.0 + 0.5 = 51.5 cm.

Suppose a measured sample is 51.6 cm. The signed difference is 51.6 − 51.0 = +0.6 cm. Under this example's direct comparison rule, it lies outside the upper limit by 0.1 cm.

A second sample measuring 50.6 cm has a difference of −0.4 cm. It falls inside the stated interval. The minus sign gives useful information: the measurement is below target, even though it is within tolerance.

Use the buyer's agreed rules for rounding, remeasurement and boundary decisions. Do not round an unwanted result into tolerance after seeing it. If measurement uncertainty is material to the decision, agree how it will be handled before inspection.

Tolerances need product judgement. A closure alignment or a small placement detail may need a different limit from a long body dimension. Do not copy one tolerance across the entire sheet just to complete empty cells.

Control units and conversion

Choose a master unit for the specification. If the buyer needs a second unit, label it as a conversion and define how it is rounded. Avoid two independently edited tables that can drift apart.

NIST states that one inch equals exactly 25.4 millimetres. Thus 20 inches equals 50.8 cm. The exact conversion factor does not make a physical measurement exact; tools, handling and reading still affect the result.

Convert tolerances as well as targets. If a target is 20 inches with a tolerance of ±0.25 inch, the converted tolerance is ±0.635 cm. The limits are 50.165 cm and 51.435 cm before any agreed rounding.

Writing “50.8 cm ±0.25 cm” would shrink the allowed variation. It would change the specification, not merely translate its units. Check a converted table by calculating at least one lower and upper limit in both systems.

For practical use, the parties may agree rounded metric targets and limits. Record that as an approved decision. Keep the source values so a reviewer can see what was changed and why.

Do the same for artwork dimensions, stitch spacing and trim lengths. A sheet can use different units in different sections, but each field must identify its unit. Place the unit in the column heading or beside the value rather than in a distant general note.

Describe construction so it can be repeated

A front and back sketch show the product's main features. Detail views should explain areas that the general sketch cannot resolve, such as a placket, pocket opening or concealed closure. Written notes then define the points that affect the result.

Separate seam construction from stitch type. The seam describes how the material pieces meet. The stitch describes how thread forms the sewn connection. ISO 4915 classifies stitch types, while Coats' seam guide shows that a seam construction can use different stitches.

For a critical operation, identify the seam, stitch, thread and relevant dimensions. Add the stitch density or spacing if it is part of the agreed requirement. Include edge treatment, visible topstitch position and reinforcement where these affect function or appearance.

Do not give a code without a clear reference. The factory must know which classification or drawing the code uses. A short written description helps prevent a local machine name from being mistaken for a complete construction instruction.

Treat a construction change as a product decision. Replacing a seam with another that looks similar may alter bulk, stretch or edge protection. Review the actual sample and the relevant performance needs before changing the production instruction.

Leave machine setup to the responsible technical team unless a validated setting is part of the controlled process. A garment specification should define the required result and essential method. It should not contain a guessed setting copied from an unrelated style.

Connect materials, artwork and labels to the right version

Link fabric and trim entries to their approved references. Include the information needed to select the right variant, such as colour, length, width or size. A material name alone can be too broad to identify the item the buyer accepted.

For print and embroidery, show the artwork reference and revision. State the finished dimensions, placement references, colour sequence where needed and any approved sample. Distinguish the design's outer size from the position of its first stitch or printed edge.

Artwork placement should use fixed garment references. “About 8 cm below the neck” leaves both the endpoint and tolerance open. State which neck point, which artwork point and which path the distance follows.

Label content needs its own evidence. In the United States, the FTC's textile and wool labelling guide explains requirements for most covered products. These include fibre content, country of origin and the responsible business identity. Those are US rules; the destination market and product determine what applies.

The specification should point to approved label artwork and its placement. Do not ask a factory to infer a legal claim from the fabric nickname. For example, a trade name is not enough evidence for a fibre-content statement.

Check that the packing sheet refers to the same style, colour and size names. A correctly made garment can still be assigned the wrong barcode or size sticker if the naming systems disagree.

Make open fields and exceptions visible

A blank cell can mean several things: a field does not apply, the value is unknown, or someone forgot to enter it. Those meanings lead to different actions. Choose clear status terms and explain them in the document.

For a dimension that is not yet agreed, write “pending” and name its owner. Add the date by which the decision is needed. If work may proceed meanwhile, state the assumption that the sample room or estimator should use. Keep that assumption visible in the returned sample or price.

Use “not applicable” only when the feature is absent or the field has no role in the design. A zero is a measured or specified value. It should not be used as a placeholder for an unanswered question.

Suppose a shirt's pocket width is still under review. The buyer may allow a first sample at 12.0 cm to judge proportion. Mark that number as a trial value. It does not become the bulk target merely because it appears in the first completed sheet.

Treat exceptions just as carefully. If one sample uses a substitute button, record the substitute and the tests or decisions it cannot support. The sample can still answer a fit question when the parties agree, but it may not answer the closure question.

At the next review, close each open item with a decision or carry it forward with a clear reason. Do not delete the pending marker before the value has been approved. A clean-looking spreadsheet should not hide unfinished product choices.

Before bulk release, check every pending field that could affect the goods. If a limited release is agreed, state its exact scope and who approved it. The team must know which instructions are complete and which work remains blocked.

Turn sample comments into controlled changes

Sample comments describe what the reviewer observed and what should happen next. They become risky when they remain the only place where the production target has changed.

Separate three kinds of comment: a request to correct workmanship, a change to the design target, and a request for more evidence. Each leads to a different action. “Make the pocket neater” may need a construction correction; “raise it by 0.5 cm” changes placement.

Record the affected POM or construction reference. State the old requirement, proposed new requirement and reason. Then identify who approved the change and which future samples or orders it covers.

Do not overwrite the original measured result. A sample that measured 51.6 cm remains a 51.6 cm sample even if the buyer later changes the target. Keep the observation and the decision separate so the history remains understandable.

When comments conflict, stop the affected change and ask for a decision. A fit email may say to shorten the sleeve while a marked drawing shows a longer target. The factory should not choose whichever instruction is easiest to follow.

Work through a revision before releasing it

Suppose revision 3 of the shirt uses a 70.0 cm size M body length. After a fit review, the buyer requests 71.0 cm and raises the pocket by 0.5 cm. The buyer keeps the same tolerances and leaves the chest target unchanged.

A clear revision record might look like this:

The change to size M does not automatically define the other sizes. The technical team must decide whether to shift every size by 1.0 cm, change the grade or use another rule. Record that decision in the complete size table.

The pocket change also needs a direction check. In this example, the position is measured downwards from a fixed reference. Reducing the value by 0.5 cm raises the pocket. If the method used a different reference, the same arithmetic could describe another movement.

Review affected drawings, patterns, artwork positions and material quantities. A longer body may alter fabric use, even when the sewing method stays the same. Where work content changes, the garment CM costing guide provides useful context for a separate cost review.

Decide when the new version takes effect

A revision number tells people what changed, but it does not always tell them which goods it covers. State whether the change starts with the next sample, the next purchase order, a named lot or the uncut balance of the current order.

This is the practical meaning of revision effectivity: the point at which the new instruction applies. Give it a clear boundary that the factory can trace.

If 1,200 garments have already been cut, changing the target in a shared file does not change those pieces. The team must decide how to handle that work. Keep the disposition of existing material separate from the instruction for future cutting.

ISO 10007 provides guidance on configuration management across the product life cycle. The workflow here applies that general discipline to garment documents. It is a practical method, not a claim that this sheet alone satisfies an ISO standard.

Mark older copies as superseded, retain their history and distribute the approved replacement. Ask each affected team to acknowledge receipt. Include external sample rooms, embroidery units or packing suppliers where their work is affected.

Check the sheet through a short production readback

Before release, ask the people who will use the sheet to explain their next steps. The pattern maker should find the right targets and grade rules. The sample room should locate the methods and construction details. Quality staff should know how to judge the result.

Use a few deliberate checks. Ask which chest method applies, which zipper variant belongs to size L and which artwork revision is current. These questions test whether the document works in practice without needing a long meeting.

Check internal consistency as well. The sketch, measurement table, BOM, label artwork and packing instruction should describe the same product. Resolve contradictions before the release status changes.

A controlled specification does not need to be long. It needs enough detail for the decisions the product requires, with a clear route for questions. When a requirement changes, the document should show the new target, the approved reason and the goods it affects.

References

• ISO 8559-1: body measurements for clothing size and shape work.

• CLO-SET: measurement fields, targets and version information.

• NIST: SI units and the definition of the inch.

• ISO 4915: stitch classification and terminology.

• Coats: seam types and their construction.

• US FTC: textile and wool labelling requirements.

• ISO 10007: configuration management guidance.
